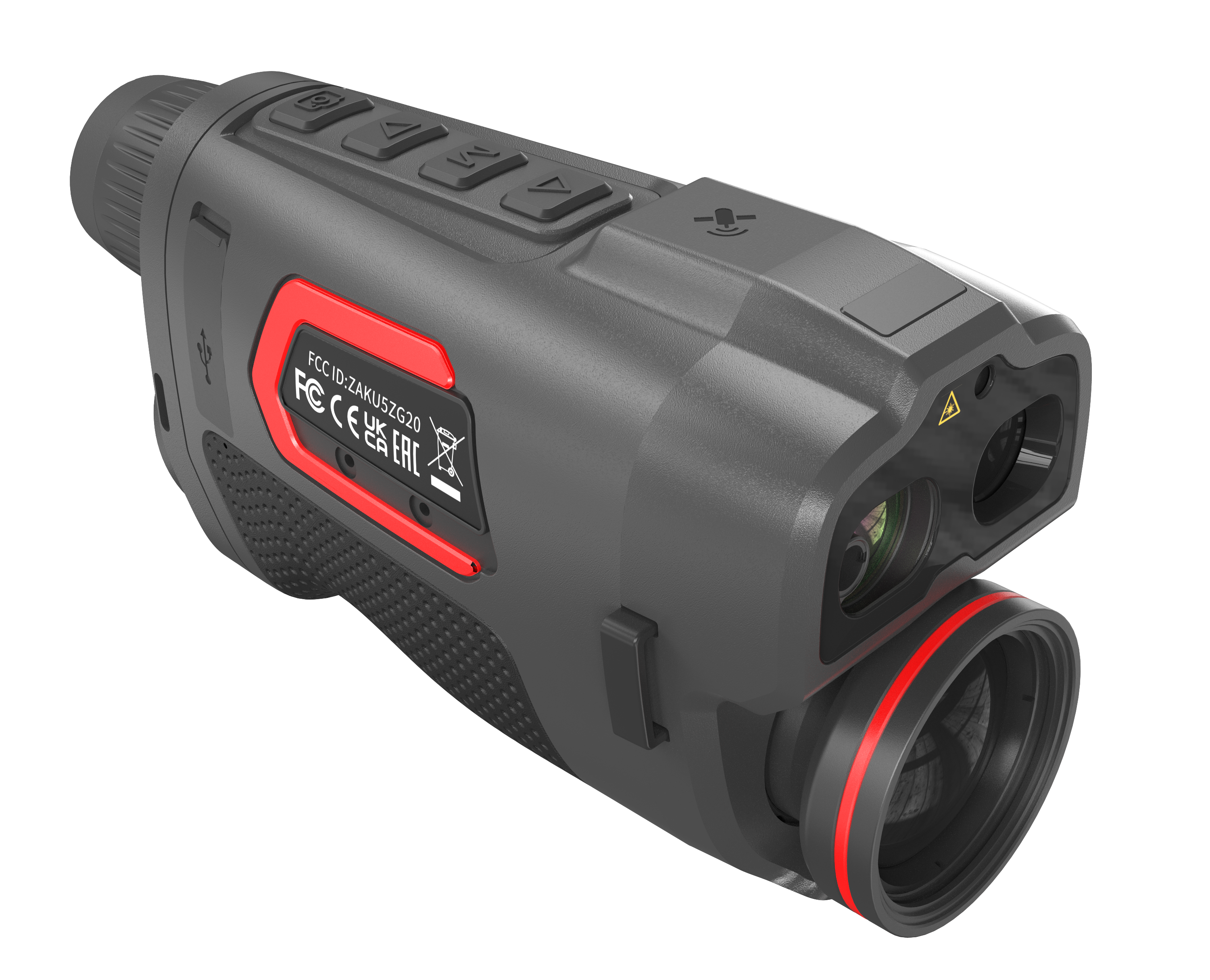

GUIDE Fusion Thermal Mono TL Series 640x480
€ 2.299,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TL630
Product information "GUIDE Fusion Thermal Mono TL Series 640x480"

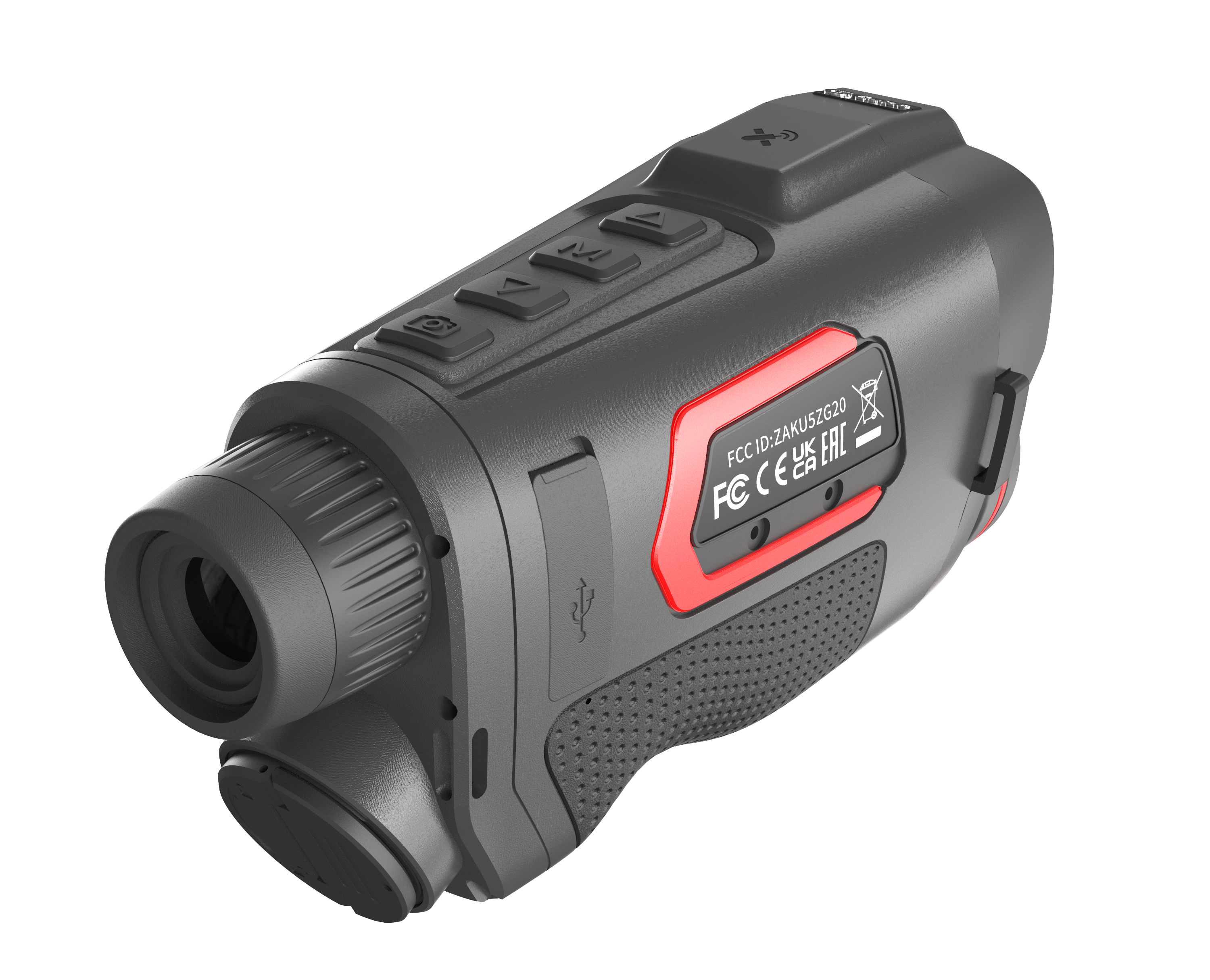

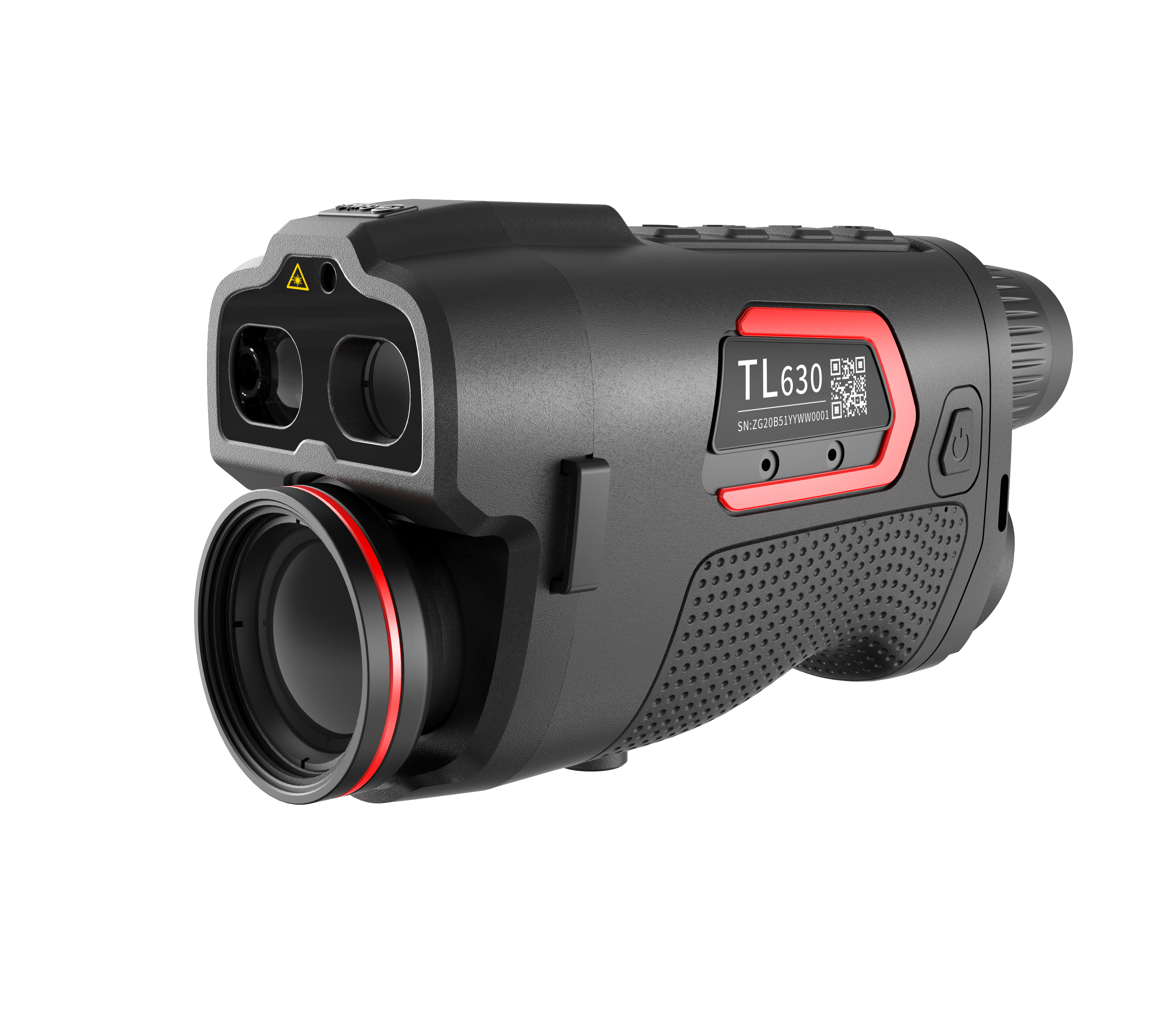

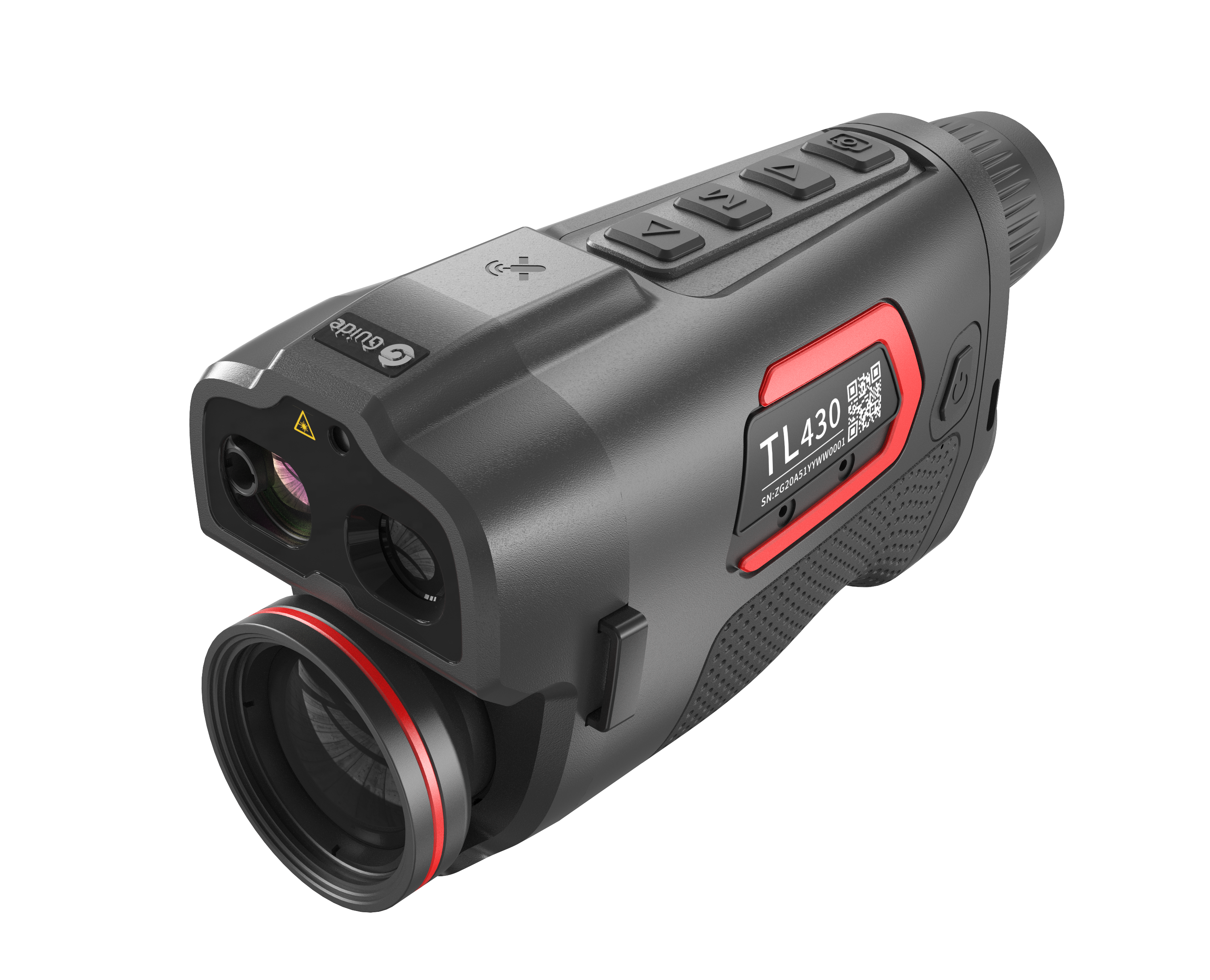

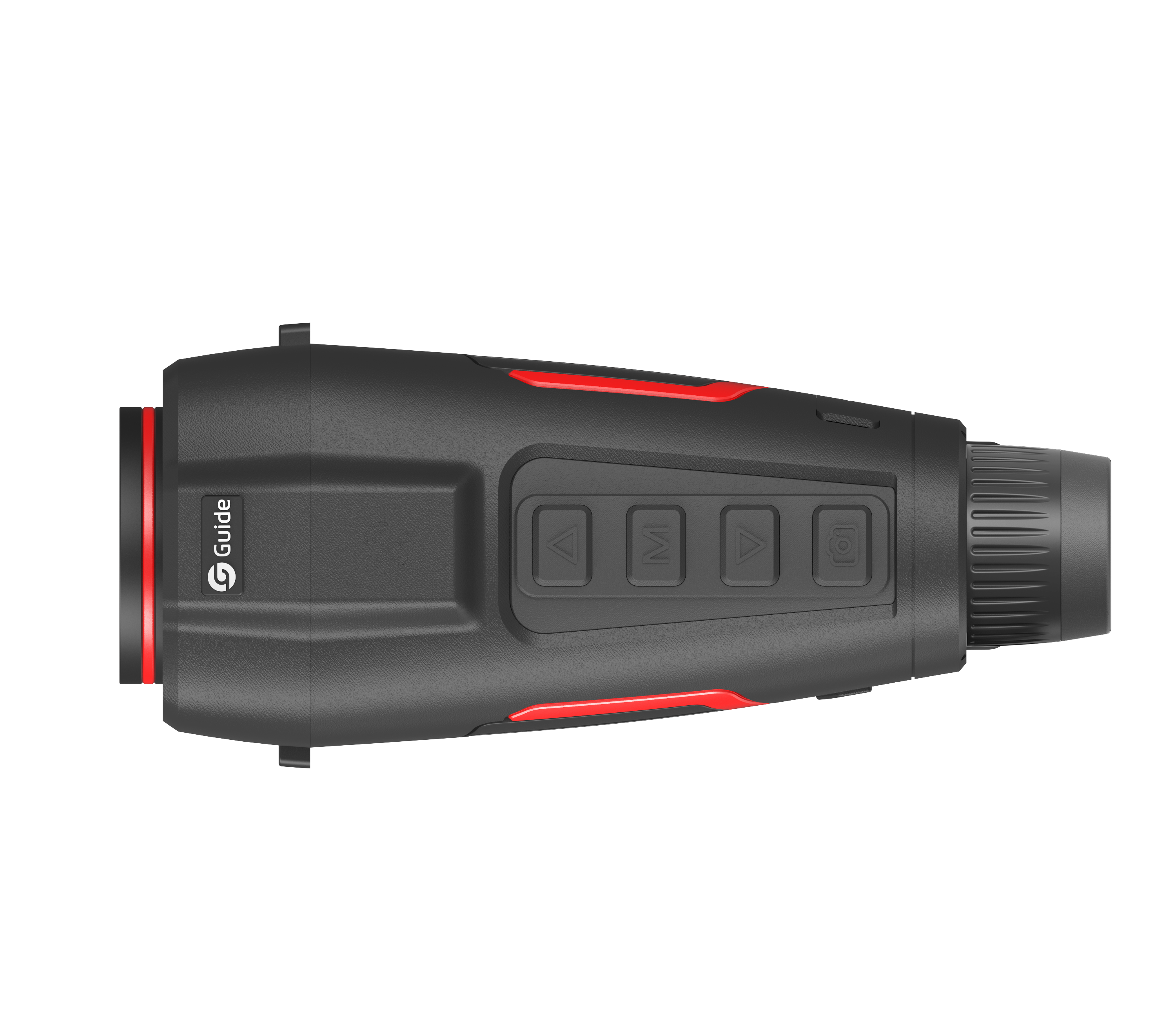

The TL Series is the first multispectral fusion thermal monocular of Guide Sensmart whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12μm high-end thermal sensor, 1920×1080 CMOS sensor and 1920×1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.
- Day & Night Use Thermal+Digital
- 400×300@12μmIR Resolution
- 1920×1080 AMOLED Display
- GPS Target Positioning
- 600m Laser Ranging
All-in-one Design for All-day and All-weather Observation:

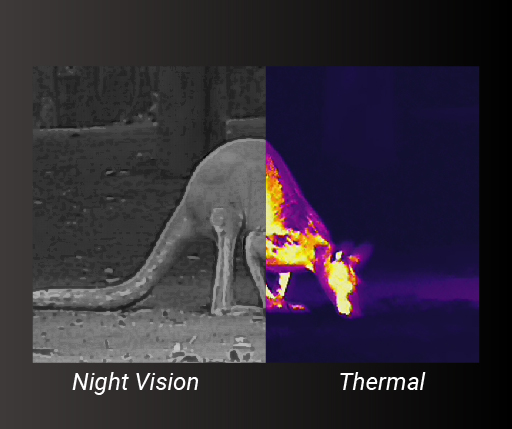

With integrated thermal and night vision, considering both the daytime and the nighttime, for quick search and target identification.

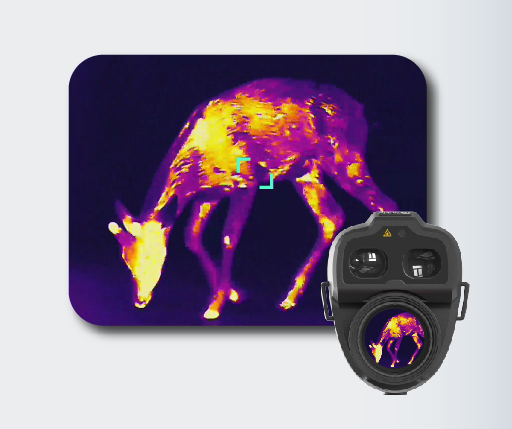

Integrated HD Thermal Detector and Digital Sensor High-quality thermal imaging and night vision with clear distinctions allow for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape, day and night.
1920×1080 AMOLED Display: High resolution 0.39'' 1920×1080 AMOLED is capable of lower power consumption, wider viewing angle, and richer color, providing a better observation details.
Built-in Precision Laser Rangefinder: The integrated high-precision laser range module can achieve 600m accurate laser ranging, allowing for the precise distance information of targets without calibration.
Built-in GPS for Target Positioning: GPS systems display the target latitude and longitude for accurate positioning, essential for hunters in navigation, safety, mapping, game tracking, and providing valuable environmental information. Integrated with a built-in laser rangefinder and gyroscope, target distance and device angle information can be obtained for quick aiming.

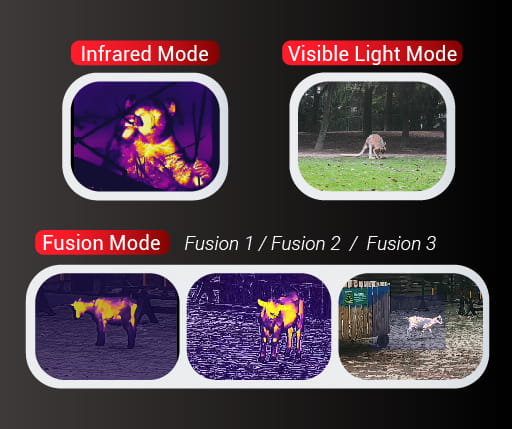

Combined Multispectral Viewing Modes: You can use the TL Series in several distinct image modes including a conventional thermal monocular with the choice of 5 color palettes, a highly detailed daylight & night vision optical camera, or the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

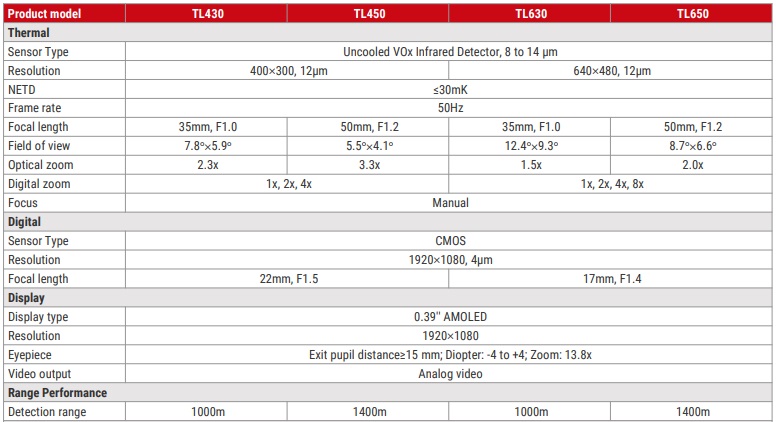

Thermal
Sensor Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 640x480, 12μm
NETD ≤30mK
Frame rate 50Hz
Focal length 35mm, F1.0 - 50mm, F1.2
Field of view 12.4°×9.3° - 8.7°×6.6°
Optical zoom 1.5x - 2.0x
Digital zoom 1x, 2x, 4x and 8x
Focus Manual
Digital
Sensor Type CMOS
Resolution 1920×1080, 4μm
Lens 17mm, F1.4
Display
Display type 0.39'' AMOLED
Display resolution 1920×1080
Eyepiece Exit pupil distance≥15 mm; Diopter: -4 to +4; Zoom: 13.8x
Video output Analog video
Range Performance
Detection range 1000m - 1400m
Hardware
Laser rangefinder Max. measuring range: 600m
Others PIP, Hot spot tracking, Target localization
Functions
Image modes IR, Visible, Fusion 1, Fusion 2, Fusion 3
Scene modes IR: Enhanced, Highlight and Natural; Visible: Day, Night and Low-light
Color palettes IR: White Hot, Black Hot, Red Hot, Iron Red, Blue Hot
Recording function Photo/Video
WIFI 2.4 G
Supported Application TargetIR
Firmware OTA Upgrade device firmware via app connection
Power
Battery type Single, replaceable 18650 battery
Operating time ≥ 5 hours
Interface USB USB Type-C

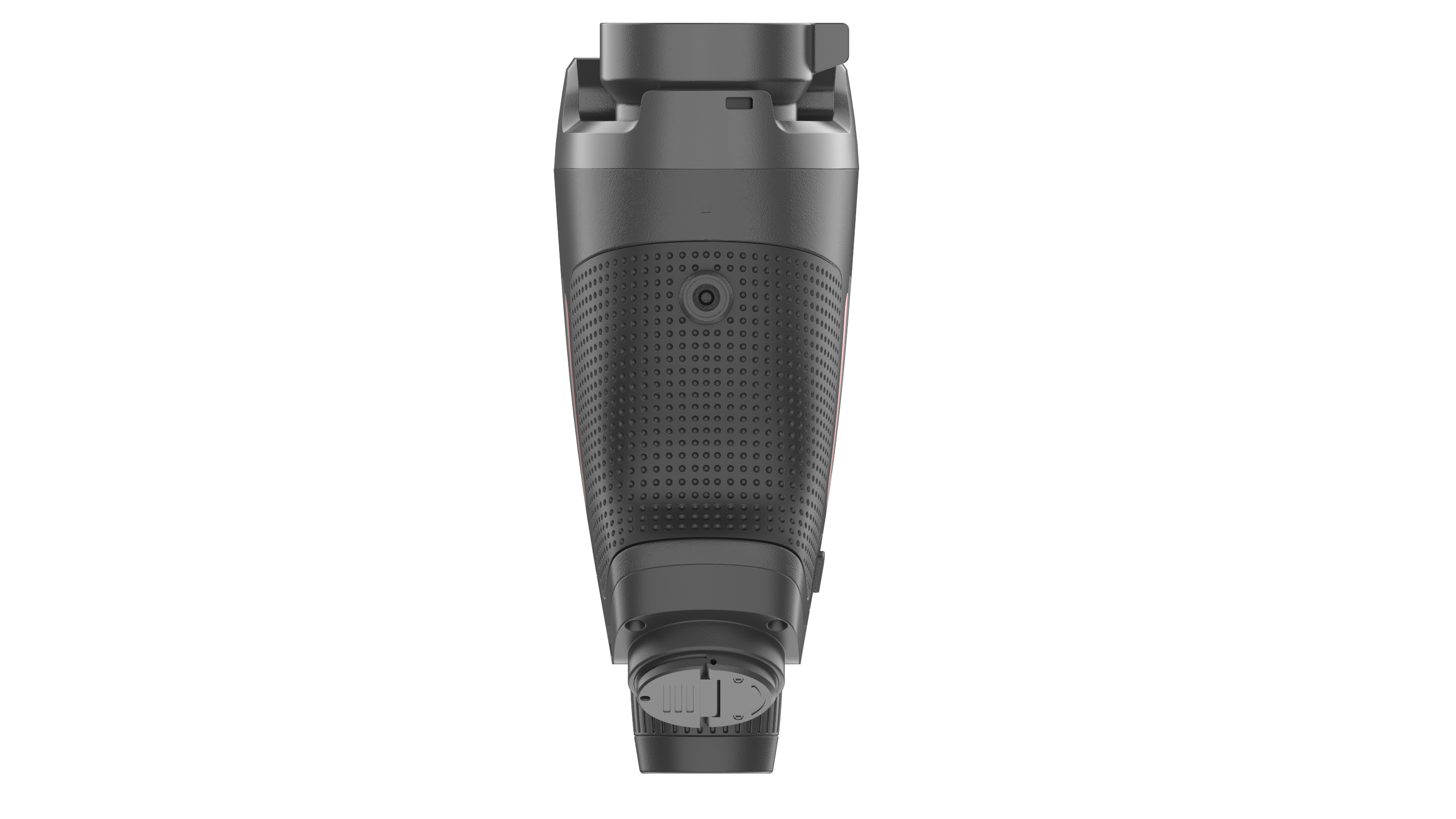

Mechanical interface UNC ¼"-20 (Tripod mounting), Mechanical expansion interface
System
Language settings English, Russian, German, French, Italian, Spanish, Japanese, Korean, Polish
Memory capacity 64 GB
Environmental Operating temperature -20 °C to 50 °C
Storage temperature -40 °C to 60 °C
Humidity 10 % to 95 % non-condensing
Shock 30 G at 11 ms half sine pulse (as per IEC60068-2-27) Drop 1 m
Encapsulation IP67
Certification IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2
Physical
Weight ≤530g - ≤567g
Size 180×70×90mm, 190×70×90mm
Standard A device (with Lens cover), Wrist strap, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card Optional Bluetooth remote control, 18650 battery, Dovetail guide
