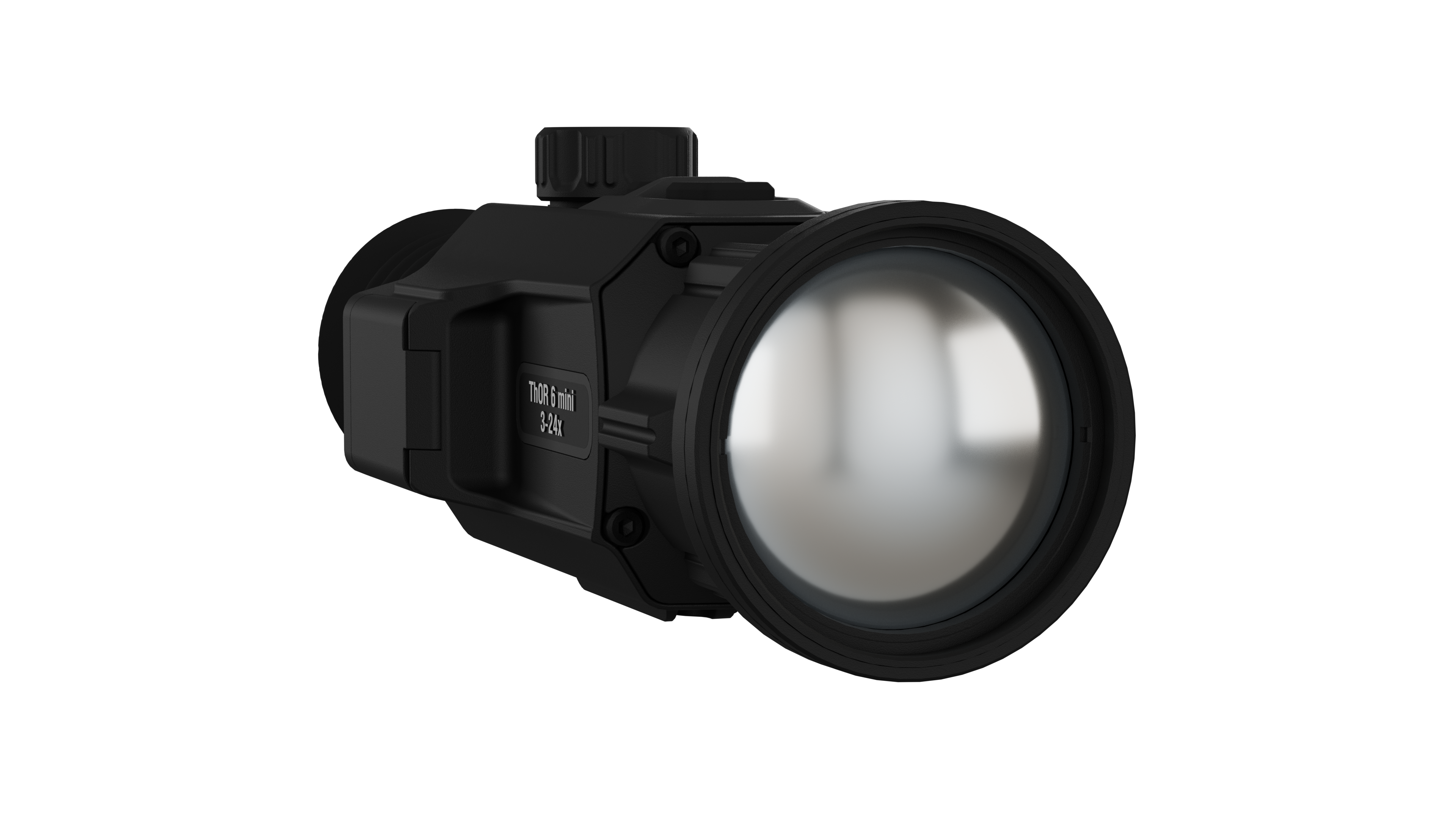

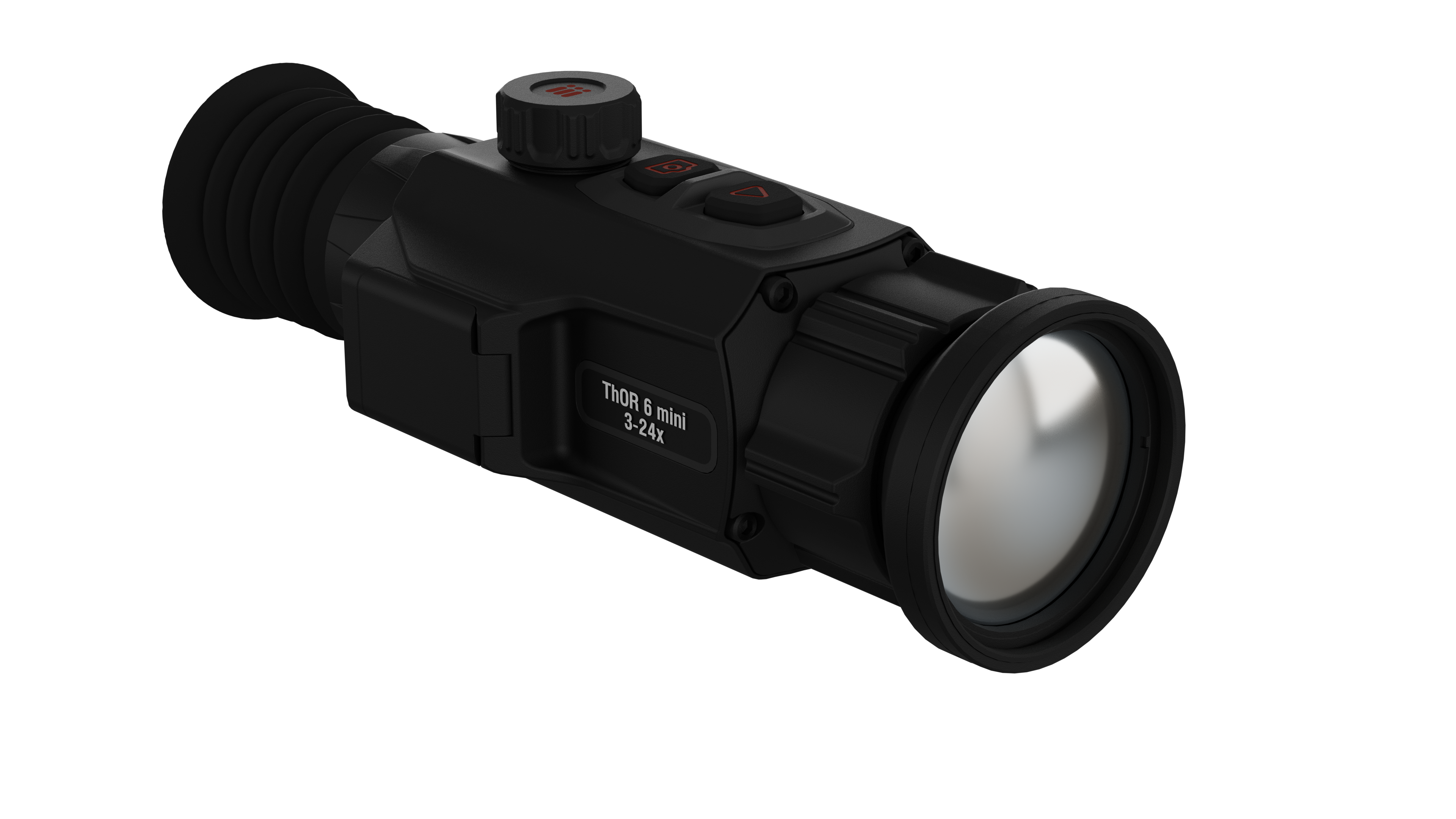

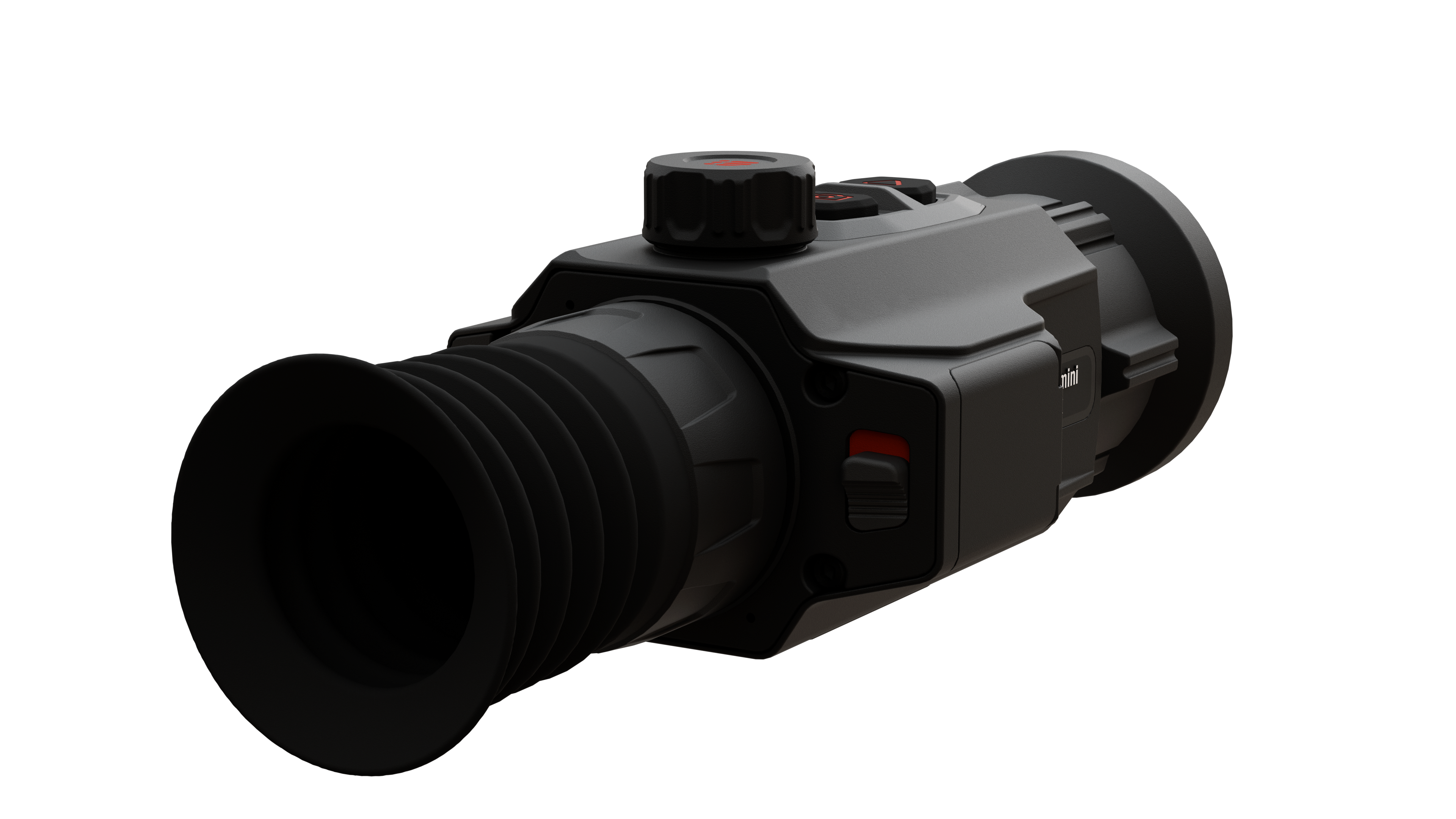

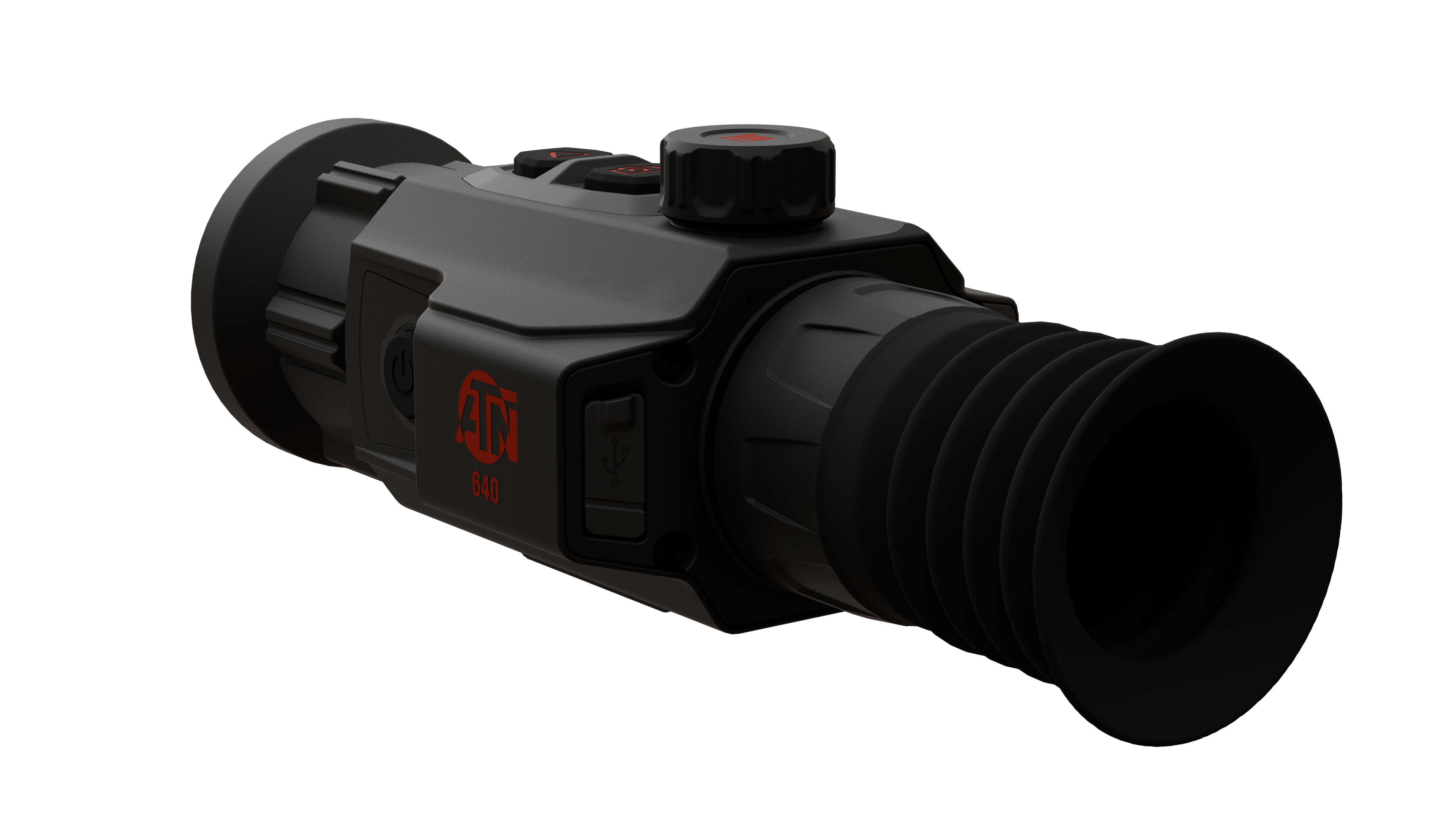

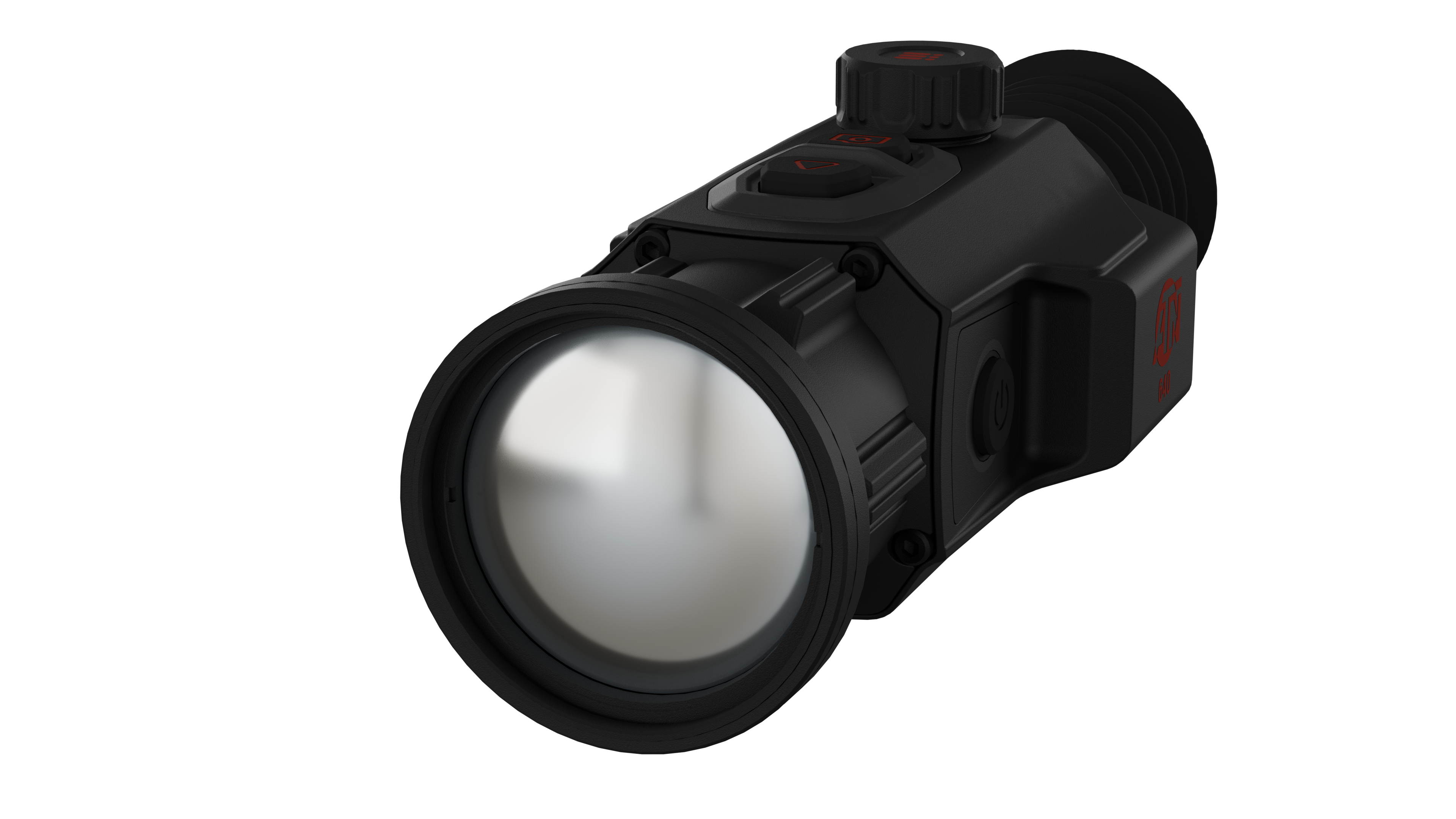

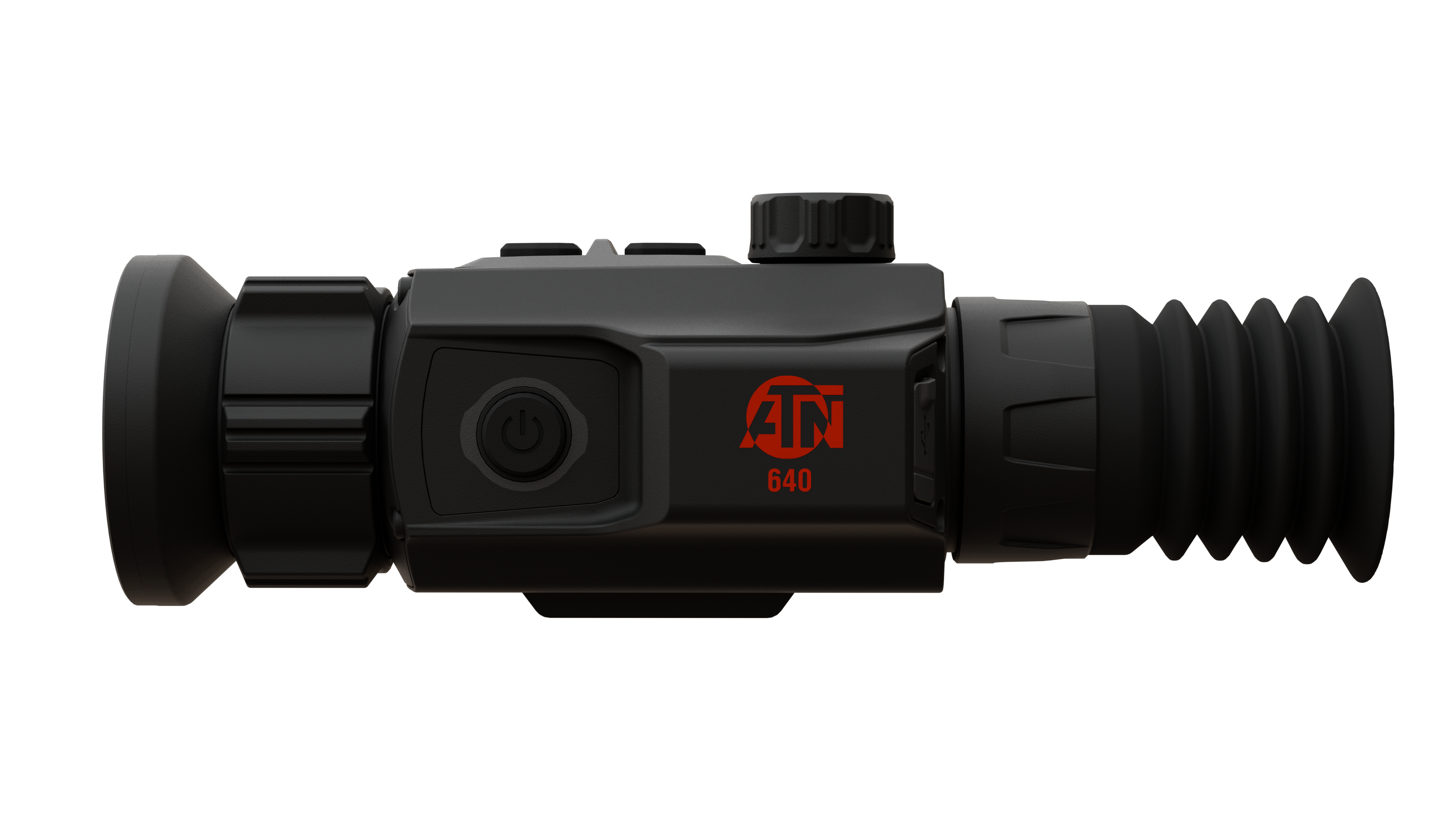

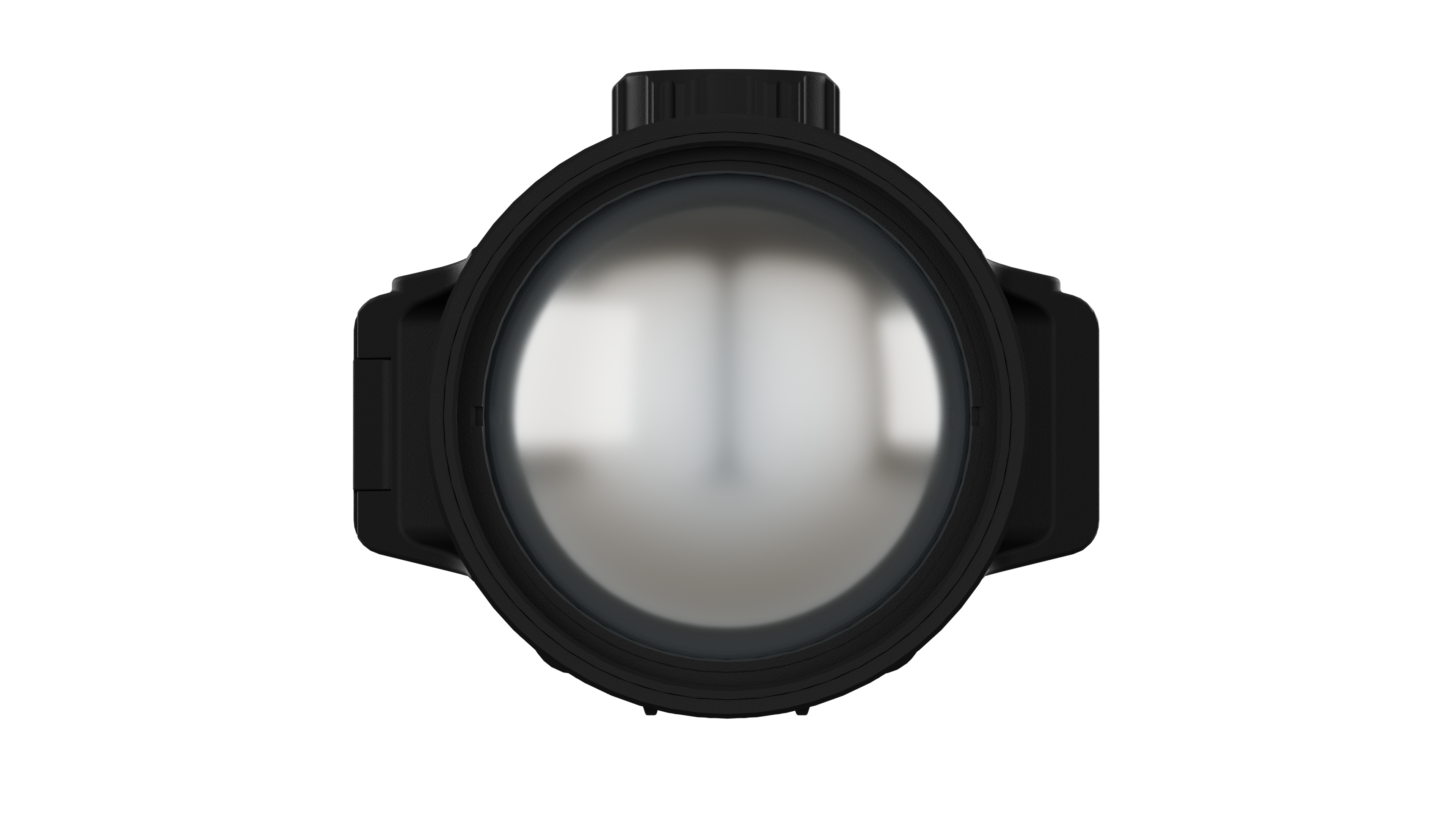

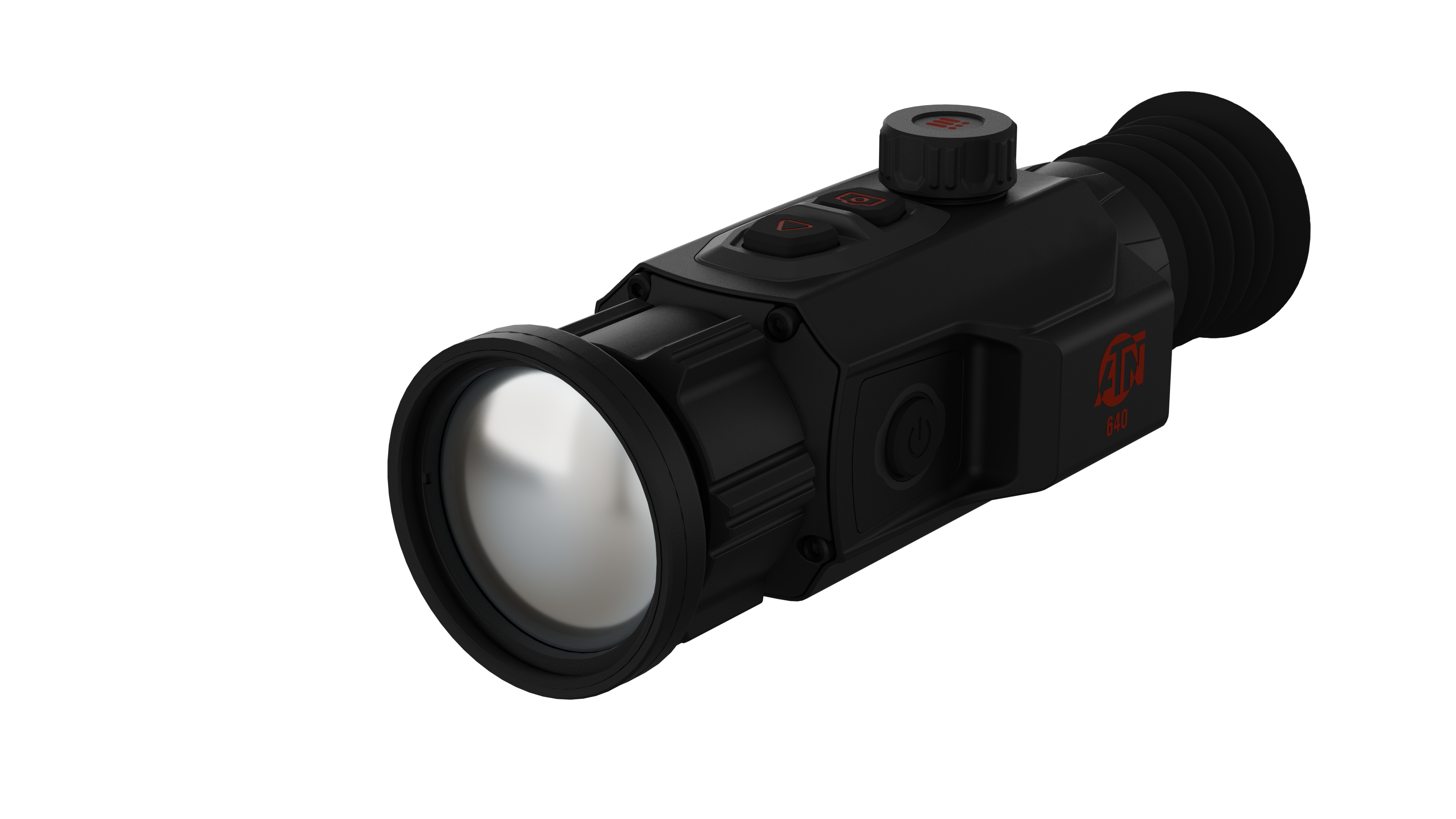

ATN Thermal Rifle Scope ThOR 6 Mini

Product information "ATN Thermal Rifle Scope ThOR 6 Mini"

ATN ThOR 6 Mini – Compact Thermal Imaging Riflescope Series Sharper. Smarter. Stronger.

The ATN ThOR 6 Mini series delivers full-scale thermal performance in an ultra-compact body built for hunters who demand speed, precision, and durability. Powered by ATN’s all-new 6th Generation thermal engine, it provides exceptional image clarity and advanced AI-enhanced functionality in a lightweight magnesium-alloy housing.

Key Highlights:

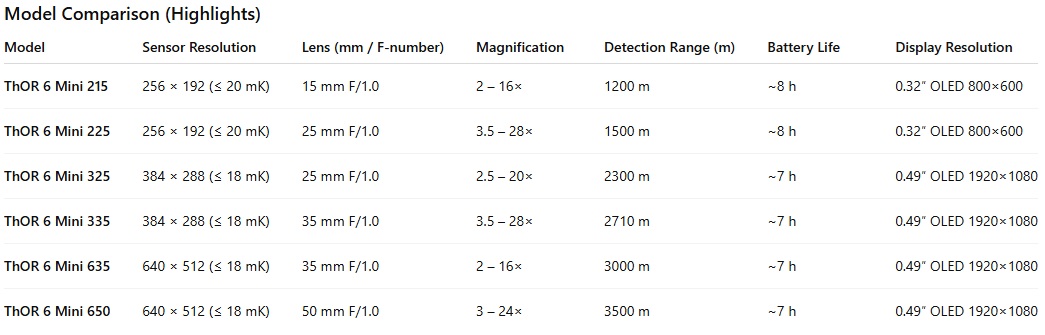

Available in three thermal sensor configurations:

256 × 192 px (≤ 20 mK NETD, enhanced sensitivity)
384 × 288 px (≤ 18 mK NETD, high sensitivity)
640 × 512 px (≤ 18 mK NETD, high sensitivity)

All models use a 12 µm VOx uncooled focal plane array sensor OLED displays matched to each configuration: 256 × 192 models → 0.32″ OLED, 800 × 600 resolution

384 × 288 and 640 × 512 models → 0.49″ OLED, 1920 × 1080 resolution

SharpIR® AI-enhanced imaging dynamically sharpens edges and improves contrast in real time
Picture-in-Picture (PIP) for precision zoom while maintaining situational awareness
Hot Point Tracking instantly highlights the hottest target in view
Adjustable reticle transparency for an unobstructed sight picture
Multiple color palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

Recording & Connectivity

Built-in video and audio recording with 64 GB internal memory
Recoil Activated Video (RAV) automatically records 10 seconds before / after recoil Internal gallery for instant playback in the field
Wi-Fi Hotspot connectivity and ATN Connect 6 App support (iOS / Android)
USB-C port for charging and media transfer

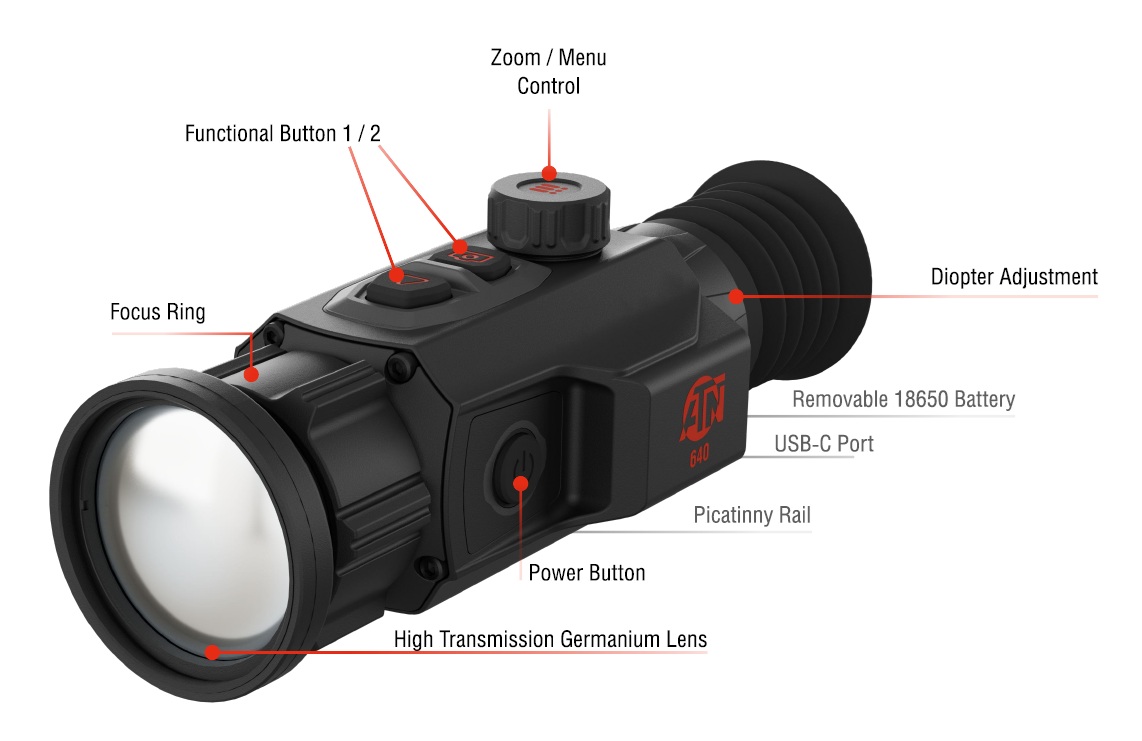

Ease of Use & Control

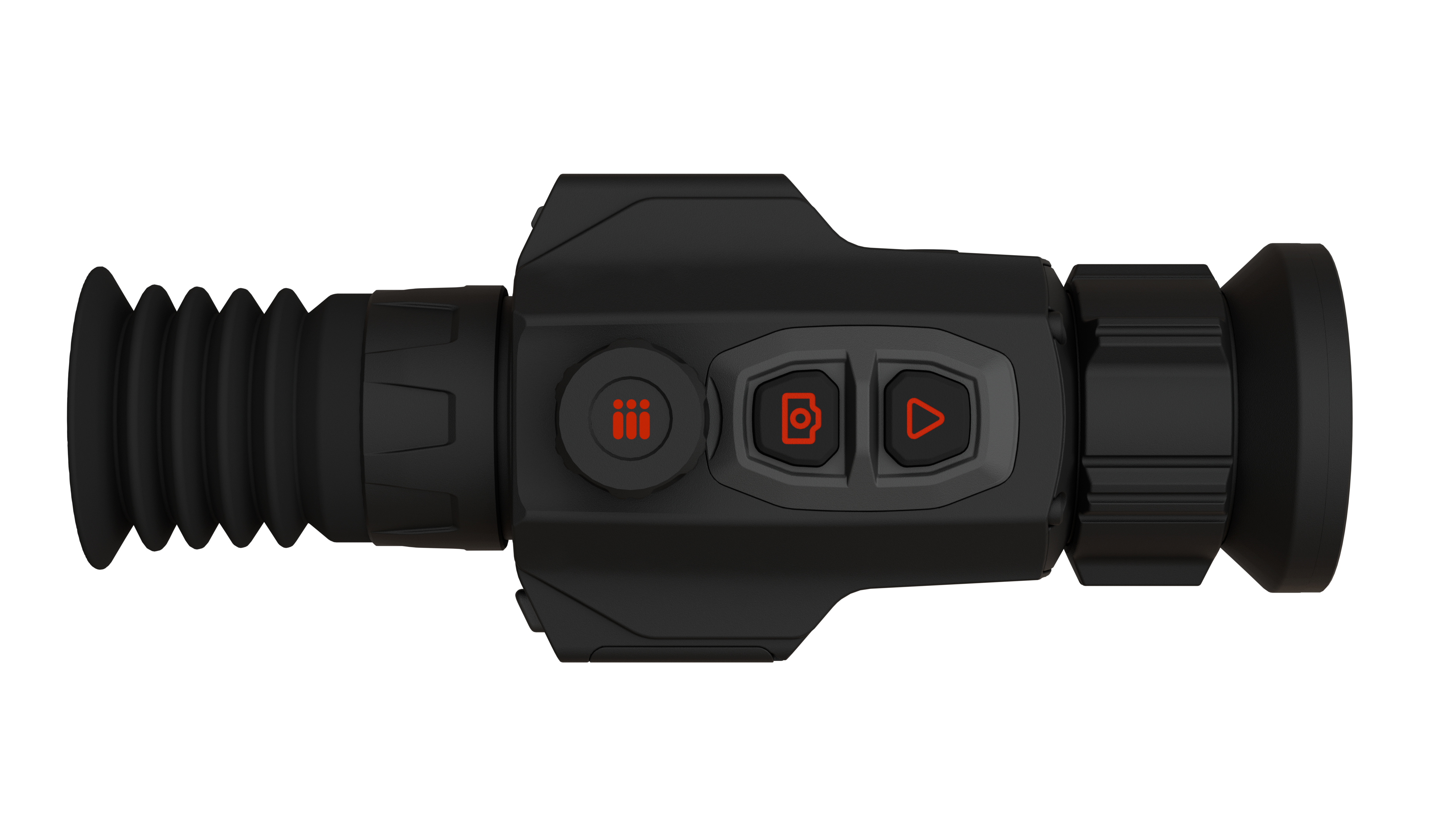

Streamlined 3-button interface for fast navigation, even with gloves
Zeroing Freeze mode for precise reticle adjustments
Up to five weapon profiles for quick swapping between rifles or calibers
Replaceable 18650 battery: 256×192 model ≈ 8 hrs runtime 384×288 and 640×512 models ≈ 7 hrs runtime
External power support via USB-C
Startup time: 7 seconds (instant from standby)

Construction & Durability

Magnesium-alloy housing, IP67 rated
Shock resistance: up to 6000 J / 1000 g acceleration
Operating temperature: –30 °C to +55 °C
Mounting: Picatinny rail
Weight: approx. 500–580 g depending on model
Warranty: 5 years

Applications

Predator and Nuisance Hunting – spot coyotes, hogs, and varmints day or night, through brush or fog
Tactical and Law Enforcement Use – detect threats in total darkness, smoke, or obscured environments
Border Patrol and Anti-Poaching Operations – identify human or animal heat signatures at long range in low-visibility conditions
