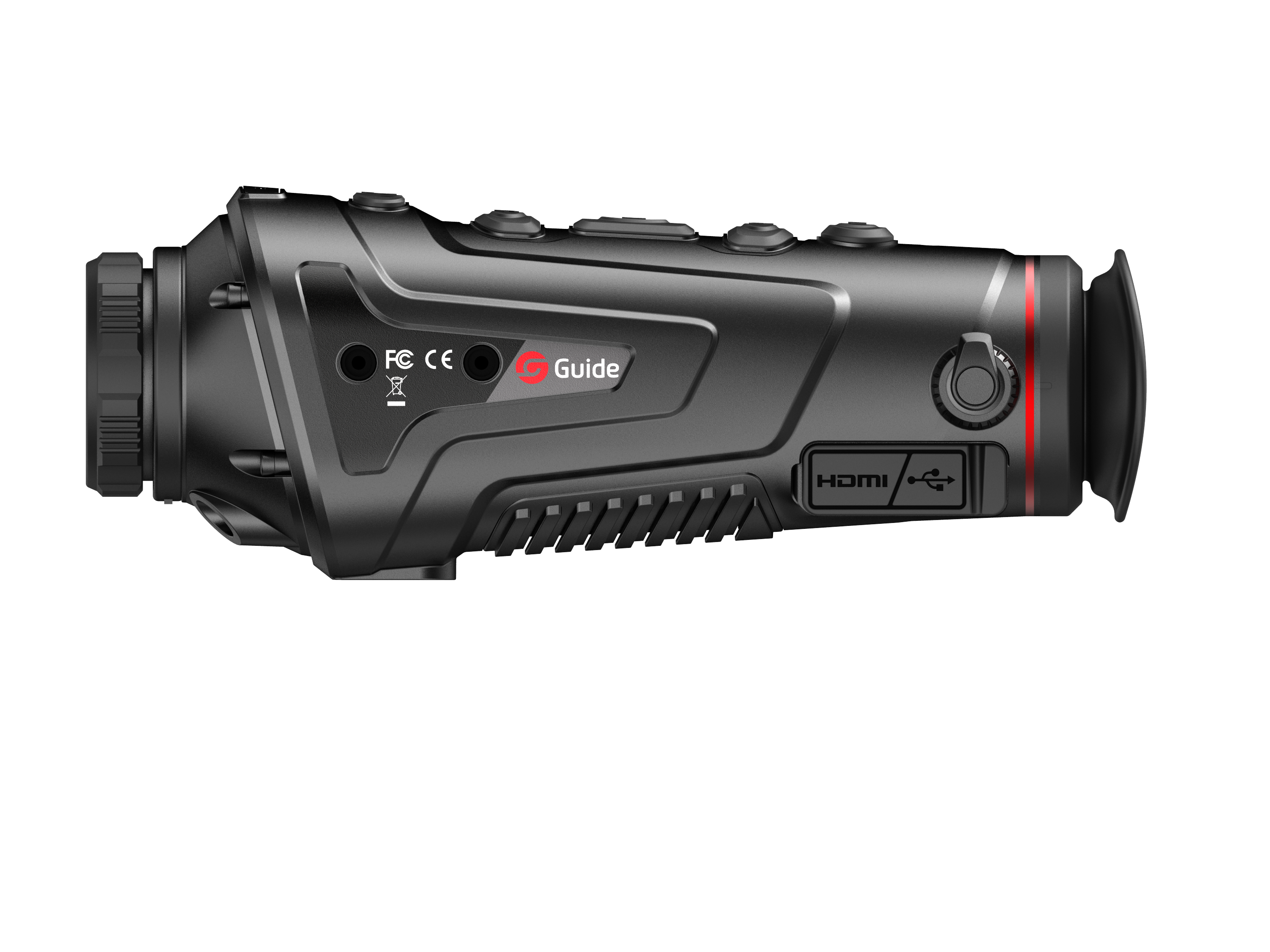

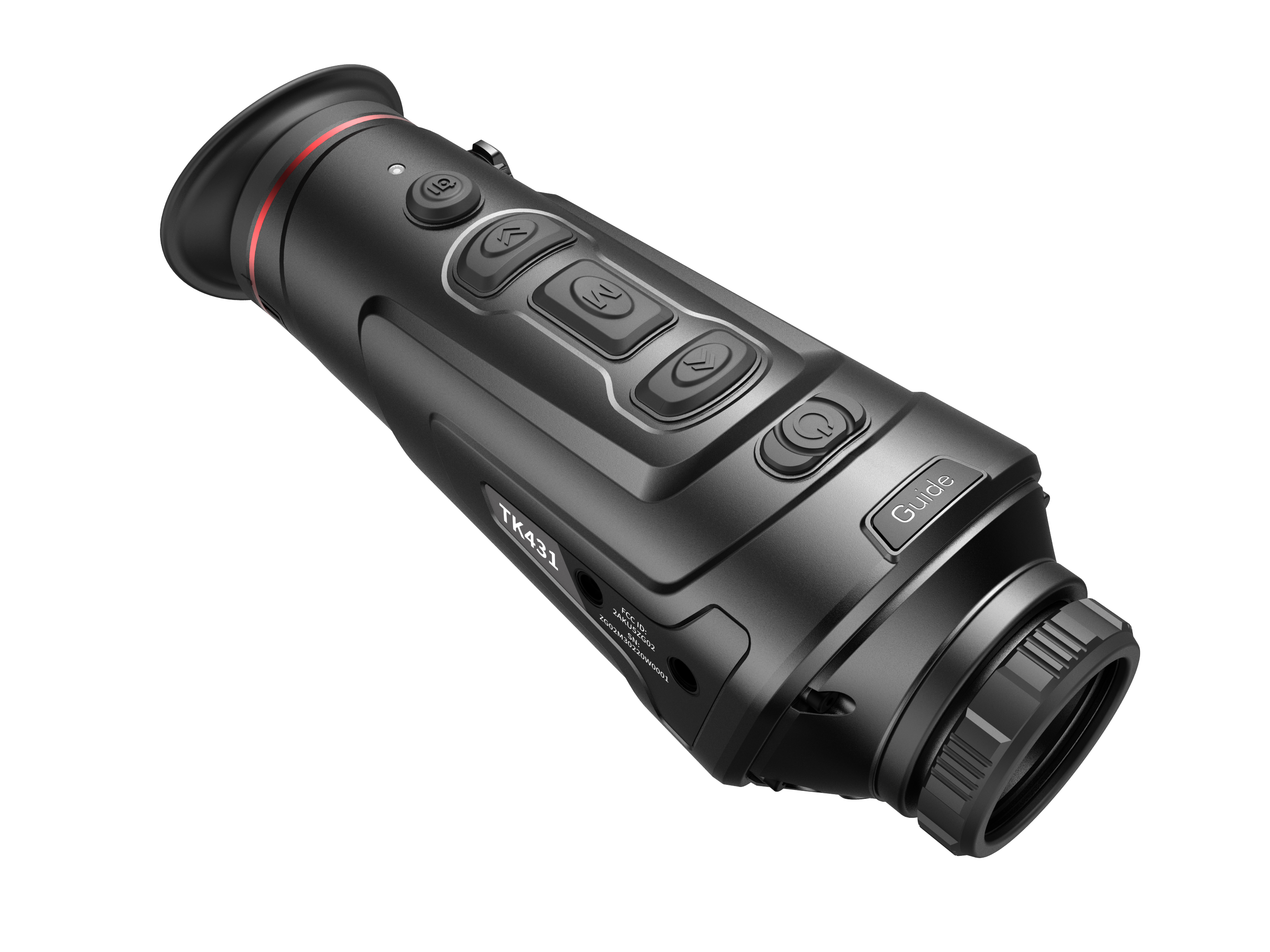

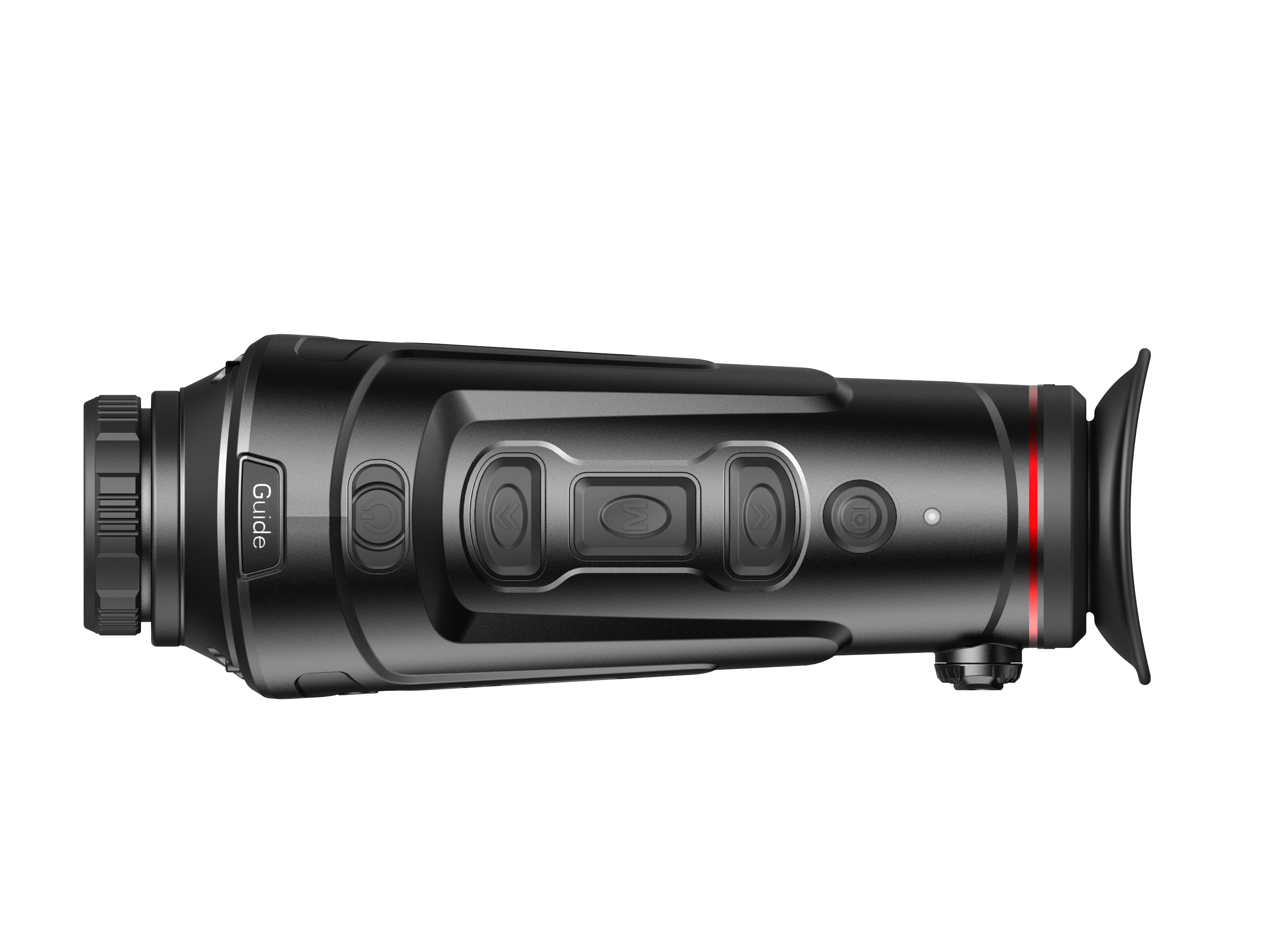

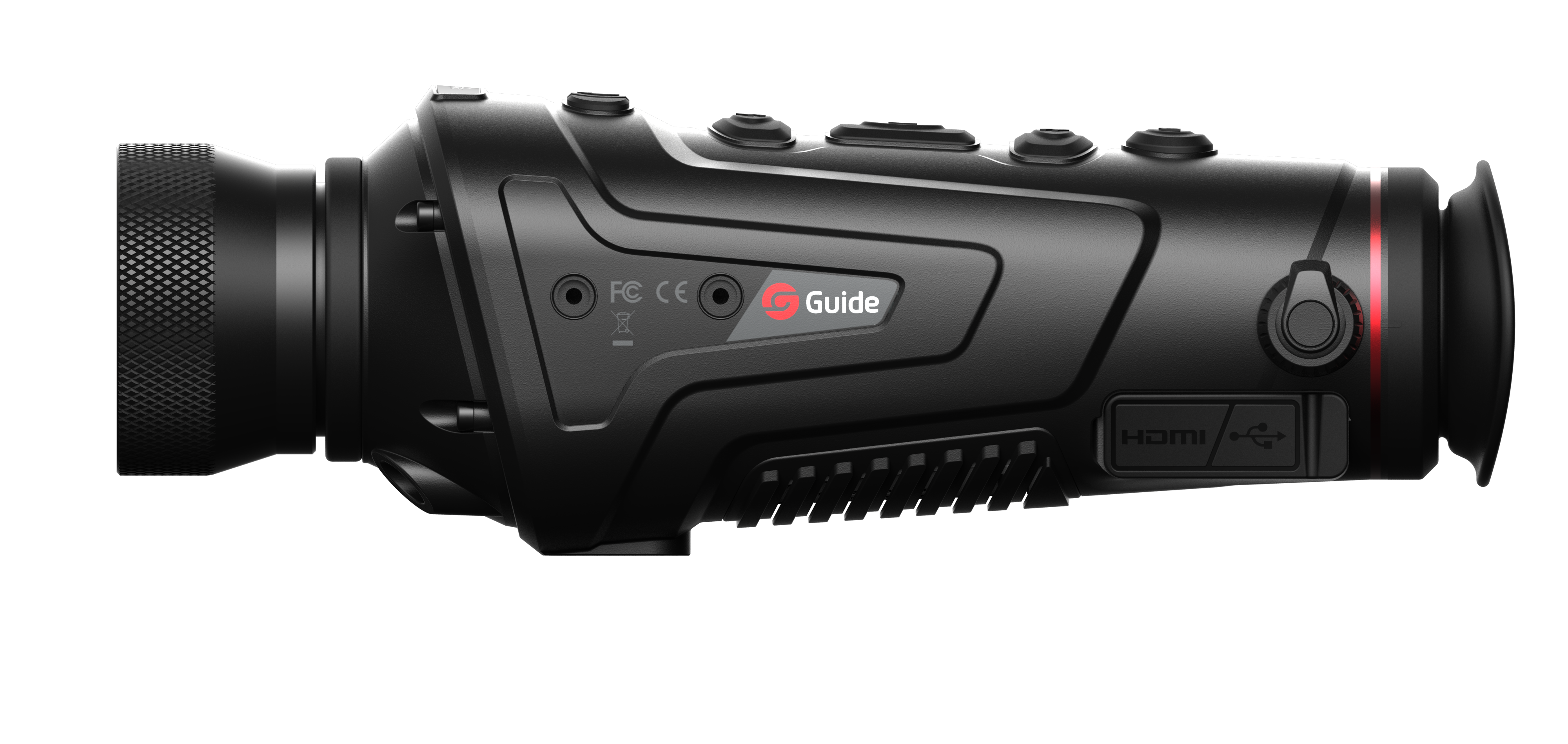

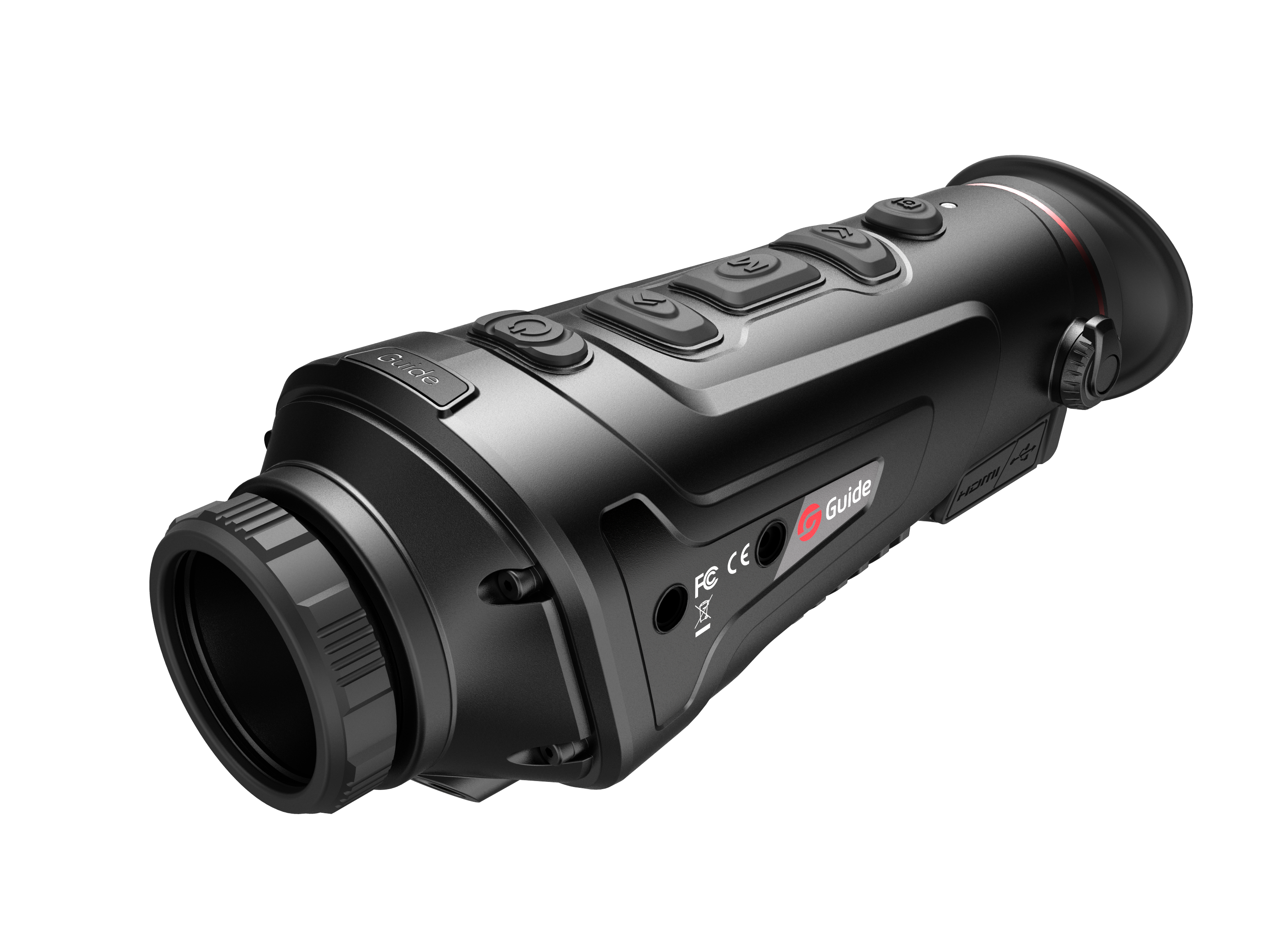

GUIDE Thermal Monocular TK Series Gen2 640x480
€ 2.399,00
stocklevel
This is an advised retail price. You have to login to see dealer pricing and to be able to order.
Manufacturer nr:
TK611
Product information "GUIDE Thermal Monocular TK Series Gen2 640x480"
Equipped with Guide’s new self-developed infrared detector and the patented image processing technology, the TK Gen2 Kitalpha Series captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment, approximate ranging and PIP. Personalized image observation is supported in different scene modes. The built-in laser indicator and illuminator facilitate itself to be operated in harsh environment.

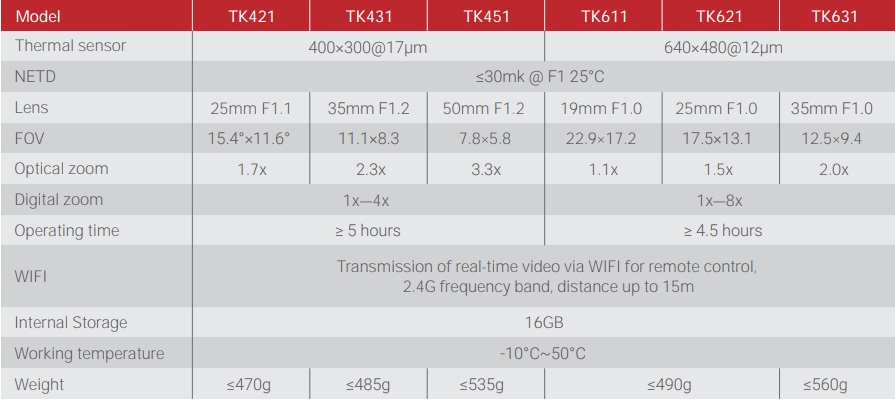

TK611
640×480@12μmIR Resolution
≤30mk @ F1 25℃NETD
19mm F1.0Focal Length
22.9°×17.2°FOV
TK621
640×480@12μmIR Resolution
≤30mk @ F1 25℃NETD
25mm F1.0Focal Length
17.5°×13.1°FOV
TK611
640×480@12μmIR Resolution
≤30mk @ F1 25℃NETD
19mm F1.0Focal Length
22.9°×17.2°FOV
TK621
640×480@12μmIR Resolution
≤30mk @ F1 25℃NETD
25mm F1.0Focal Length
17.5°×13.1°FOV
TK631
640×480@12μm IR Resolution
≤30mk @ F1 25℃NETD
35mm F1.0Focal Length
12.5°×9.4°FOV
640×480@12μm IR Resolution
≤30mk @ F1 25℃NETD
35mm F1.0Focal Length
12.5°×9.4°FOV

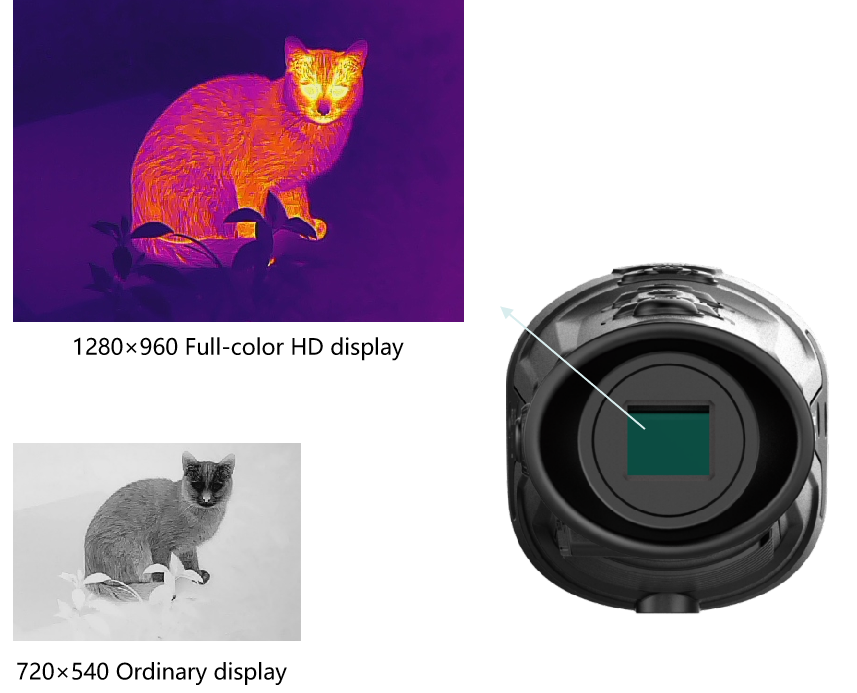

Find the HD resolution images:
Featuring the new self-developed infrared metal detector, TK Kitalpha Series comes with 400x300 and 640x480 thermal resolution. The 3DNR and PureIR adaptive filtering algorithm provide superior image quality and detailed vision in complex environments.
Retrieve the object information fast:

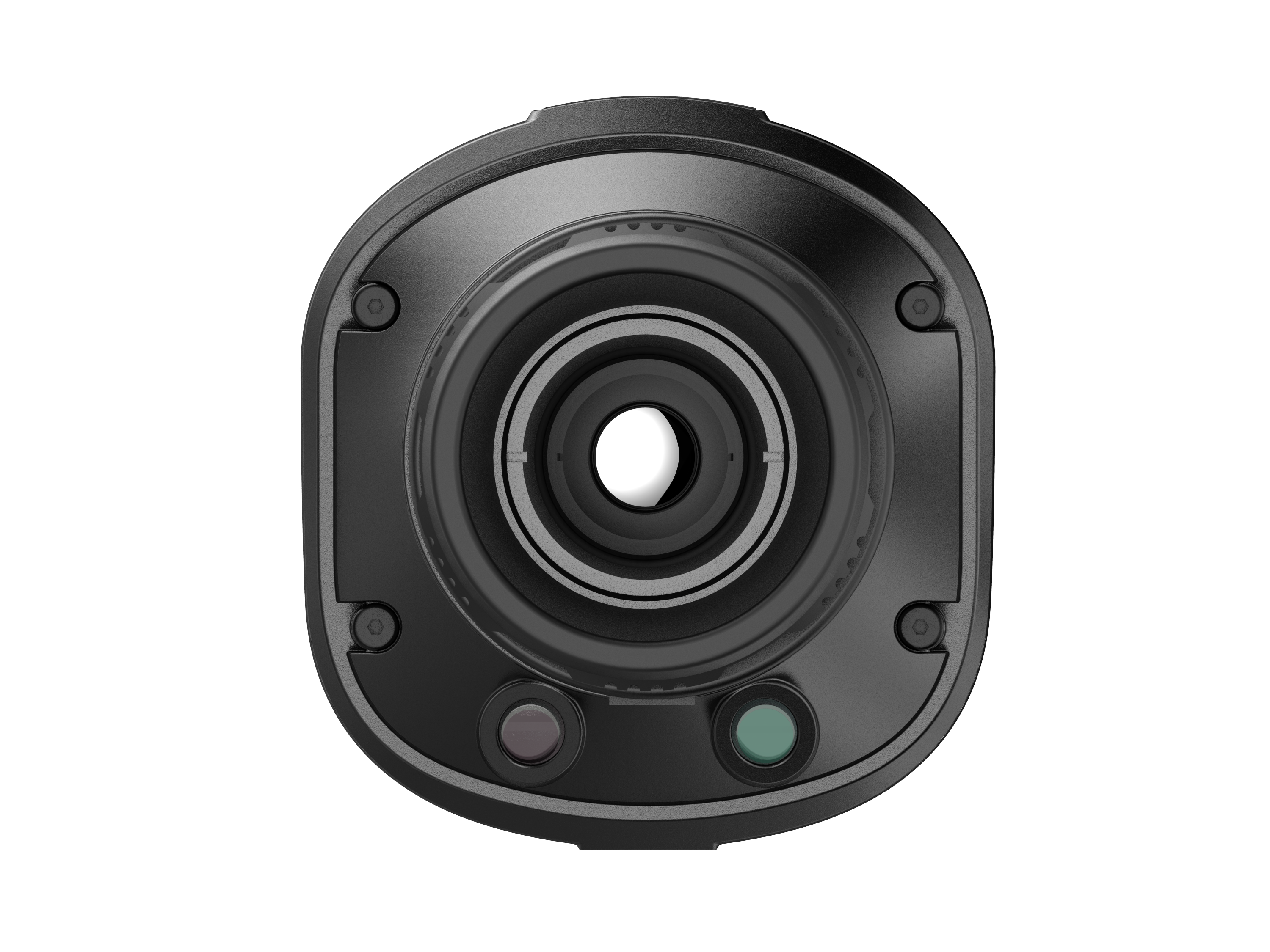

Outdoor lighting: Enable the outdoor lighting function to generate the visible light images.
Laser indicating: Enable the laser indicating function to locate the object at 200m.
Deliver a stunning HD view: Thanks to the full-color 0.4-inch HD display with 1280 x 960 pixels, the image is crisper and more delicate. It feels like watching 22-inch screen at 1 meter, which greatly improves the observation comfort.
Retrieve the object information fast:
Outdoor lighting: Enable the outdoor lighting function to generate the visible light images.
Laser indicating: Enable the laser indicating function to locate the object at 200m.
Deliver a stunning HD view: Thanks to the full-color 0.4-inch HD display with 1280 x 960 pixels, the image is crisper and more delicate. It feels like watching 22-inch screen at 1 meter, which greatly improves the observation comfort.
Anti-Fog Eyepiece brings the clarity:
This adaptive LCOS eyepiece prevents condensation or fogging and helps you maintain a clear view of your subject.

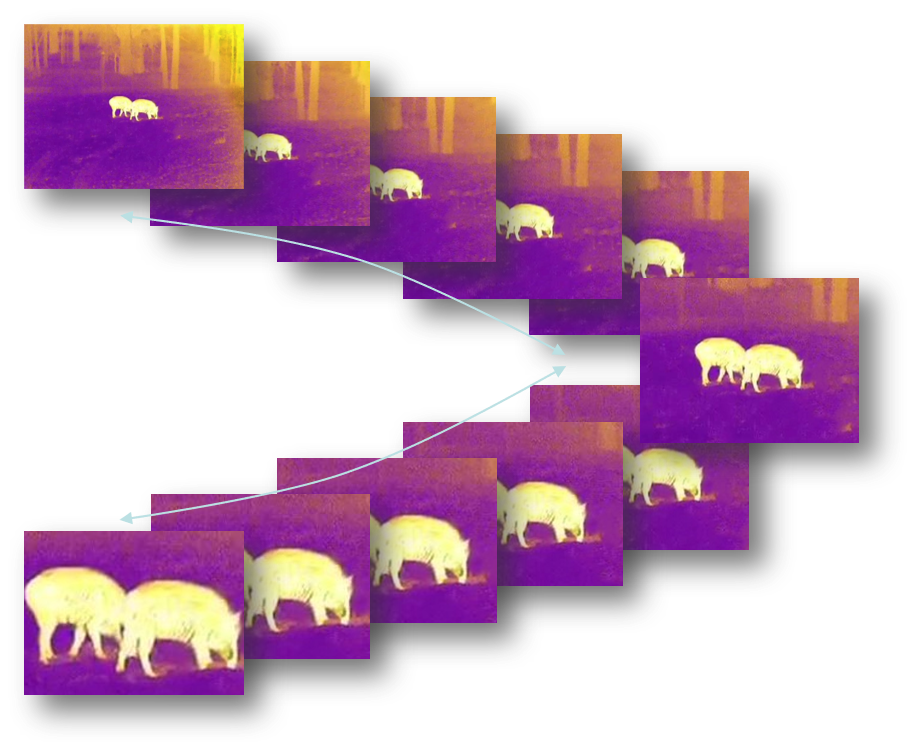

Bring extended 8x zoom capability: 8X zoom can be used to observe targets from long distances for fast location.

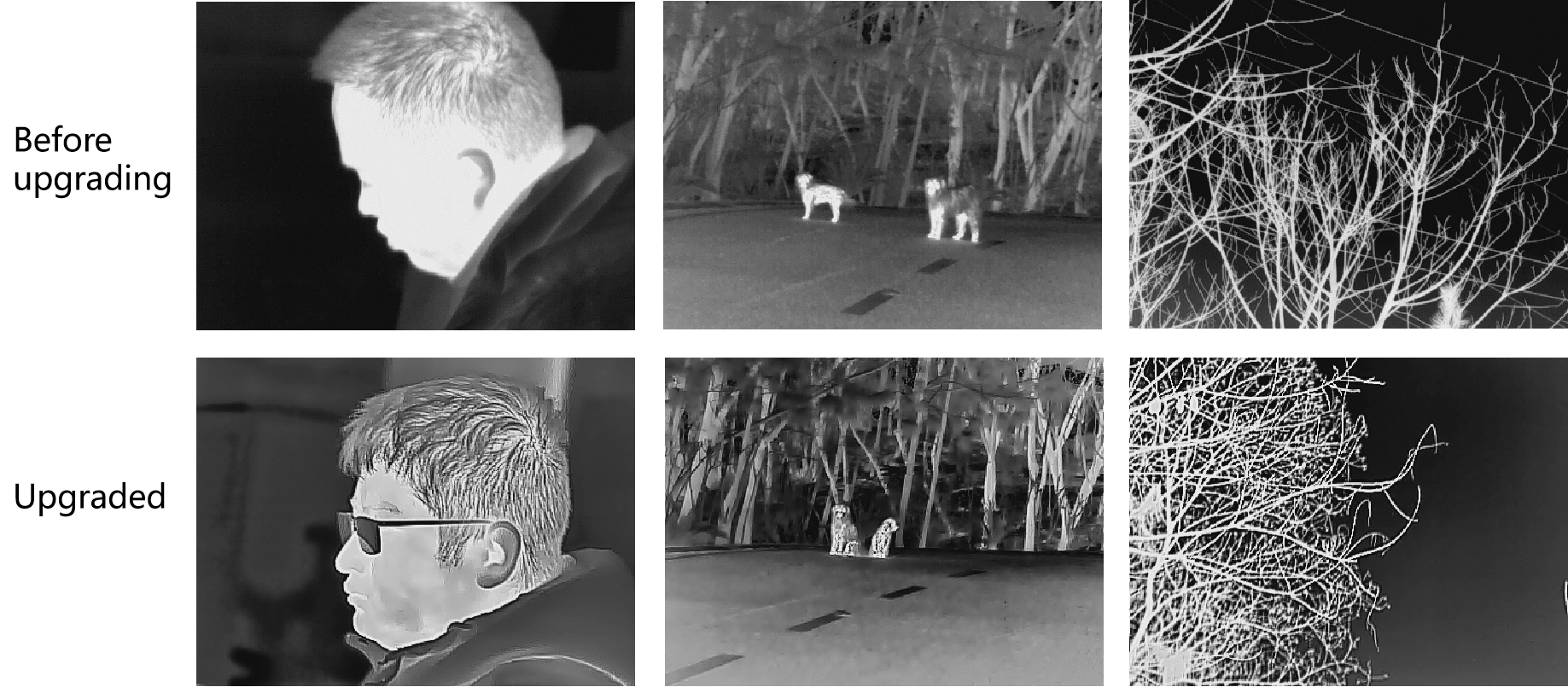

One-click switch between three scene modes: Switch between modes to give prominence to objects.
PIP mode for highlighting the target: The PIP mode allows you to zoom in on the target and highlight the details of the target when you are in the complex outdoor scenes.

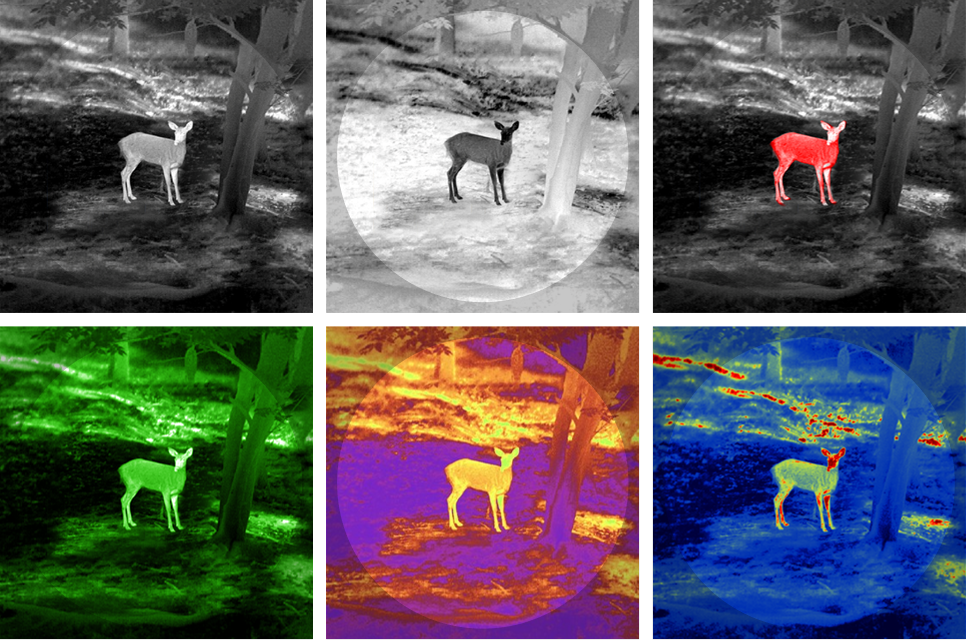

Multiple color palettes to highlight the target Six color palettes: White Hot, Black Hot, Iron Red, Blue Hot, Green Hot and Adjustable Red Hot. Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

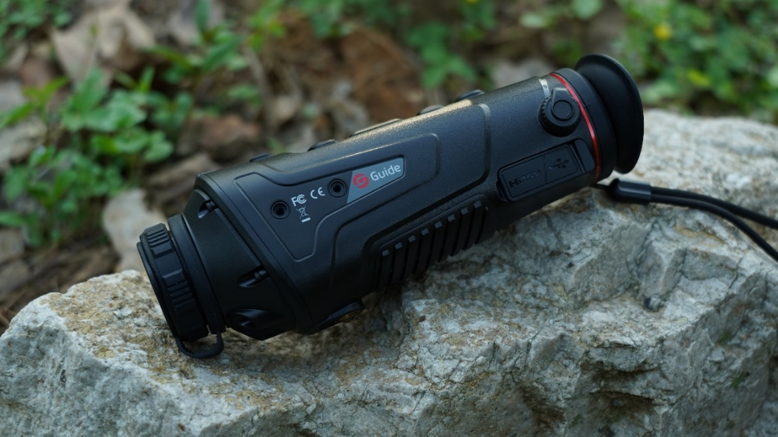

IP66, rugged and durable and quality guaranteed: With the IP66 protection level and 1-meter drop test, it is suitable for all kinds of harsh weather. The UN38.3 battery certification, RoHS, CE and FCC certification give the quality assurance.

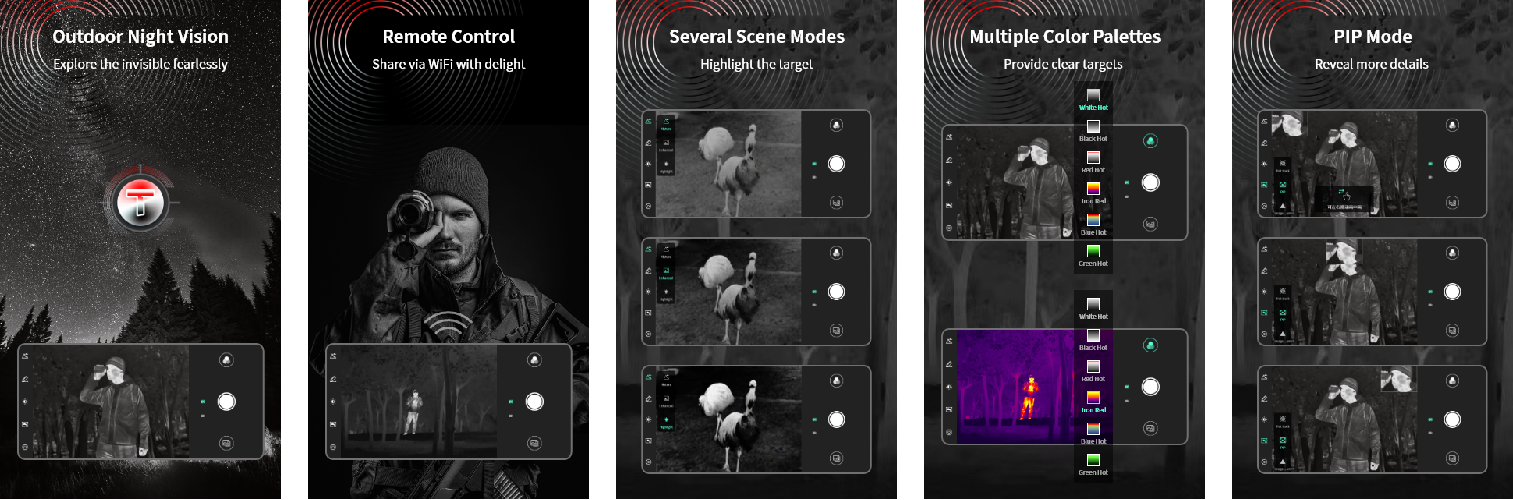

New App with a variety of functions: The TargetIR APP provides a variety of functions, such as live image and video transmission, for operating the TK Kitalpha Series.
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 640×480, 12 μm
NETD ≤30mK
Frame rate 50Hz
Lens
Focal length 19mm, F1.0, 25mm, F1.1,35mm, F1.2
Field of view 22.9°×17.2°, 17.5°×13.1°, 12.5°×9.4°
Optical zoom 1.1x, 1.5x, 2.0x
Digital zoom 1 ~ 8x
Focus Manual
Display
Display type 0.4'' FLCOS
Resolution 1280×960
Eyepiece Exit pupil distance≥10 mm; Diopter: -4 to +2; Zoom: 13.8x
Video output Digital video
Range Performance
Detection range 800 m, 1000 m, 1400 m
Hardware
Illuminator Available
Others PIP, Hot spot tracking, Rough ranging
Functions Scene modes Enhanced, Highlight and Natural
Color palettes Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
Recording function Photo/Video
WIFI 2.4 G
Supported Application TargetIR Power Battery type 2 built-in 18650 batteries (6000mAh)
Operating time ≥ 5 hours
Interface USB USB Type-C
Video interface micro HDMI
Mechanical interface UNC ¼"-20 (Tripod mounting), Mechanical expansion interface
System
Language settings Chinese / English / Russian / German / French Memory capacity 16 GB
Environmental Storage temperature -30 °C to 60 °C
Humidity 10 % to 95 % non-condensing
Shock 30 G at 11 ms half sine pulse (as per IEC60068-2-27) Drop 1 m
Encapsulation IP66
Certification IP66, FCC, CE, RoHS, EAC, un38.3
Physical
Weight ≤490 g, ≤490 g, ≤560 g
Size 192×65×71 mm, 192×65×71 mm, 214×65×71 mm
Standard Power adapter, USB cable (Type C), micro HDMI cable, lens cap, wrist strap, inner bag, shoulder strap, quick start guide
Optional Extended bracket
